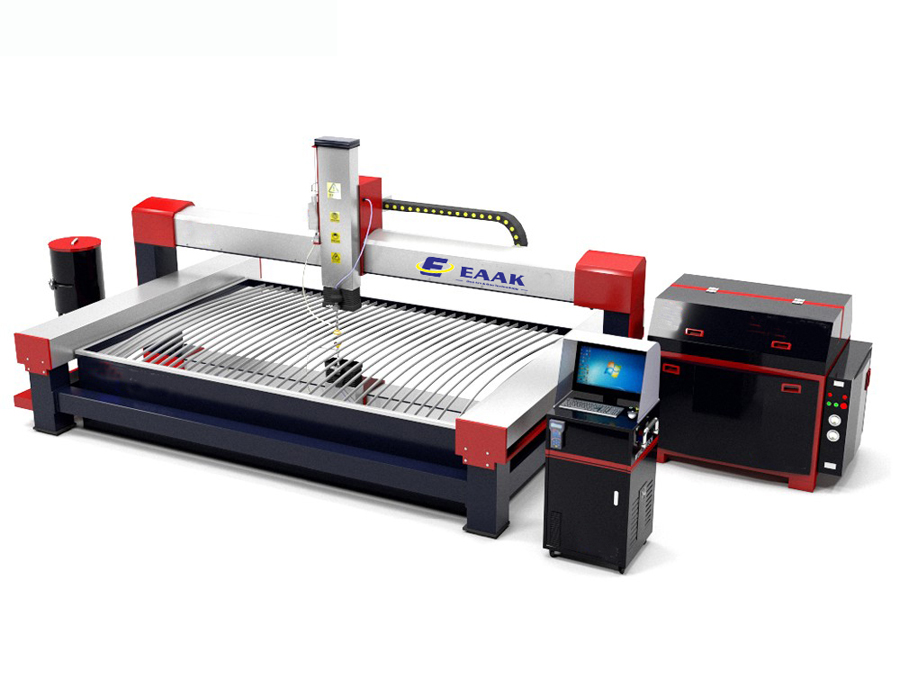

Standard Waterjet Cutting Machine

3020 Enhanced waterjet cutter

Specification of EAAK CNC water jet cutting machine:(as follows)

Model	EK3020N
X Y axis Working size	3000mm*2000mm
Z working height	150mm
Cutting Pressure	420Mpa 37kw UHP pump
Control accuracy	0.01mm
Cutting accuracy	0.1-0.2mm
Repositioning Accuracy	0.05mm
Max cutting thickness	300mm(depends on materials)
Max. moving speed	6000mm/min
Power supply	380V 50Hz
Environmental temperature	-10-50°C
Max flow rate	3.7L/min
Max oil discharge	206L/min
Max delivery capacity of oil pump	106L/min
Control system	Ncstudio (Shanghai) software IPC controller
CAD/CAM software	AutoCAD,ArtCAM
Drive motor	Japan Yaskawa servo drive motor
